The Full Scoop on the Scott Patron eRide 920

• Description
• Motor System
• Components
• Extras
• Geometry

•
  The all-new Patron eRIDE 920 designed for all day trail riding. Supreme integration and progressive geometry paired with a powerful new Bosch drive unit deliver much more than a great ride. What you get, rather, is a stellar experience up and down the mountain, time and time again. Patron eRIDE - boss the trails.

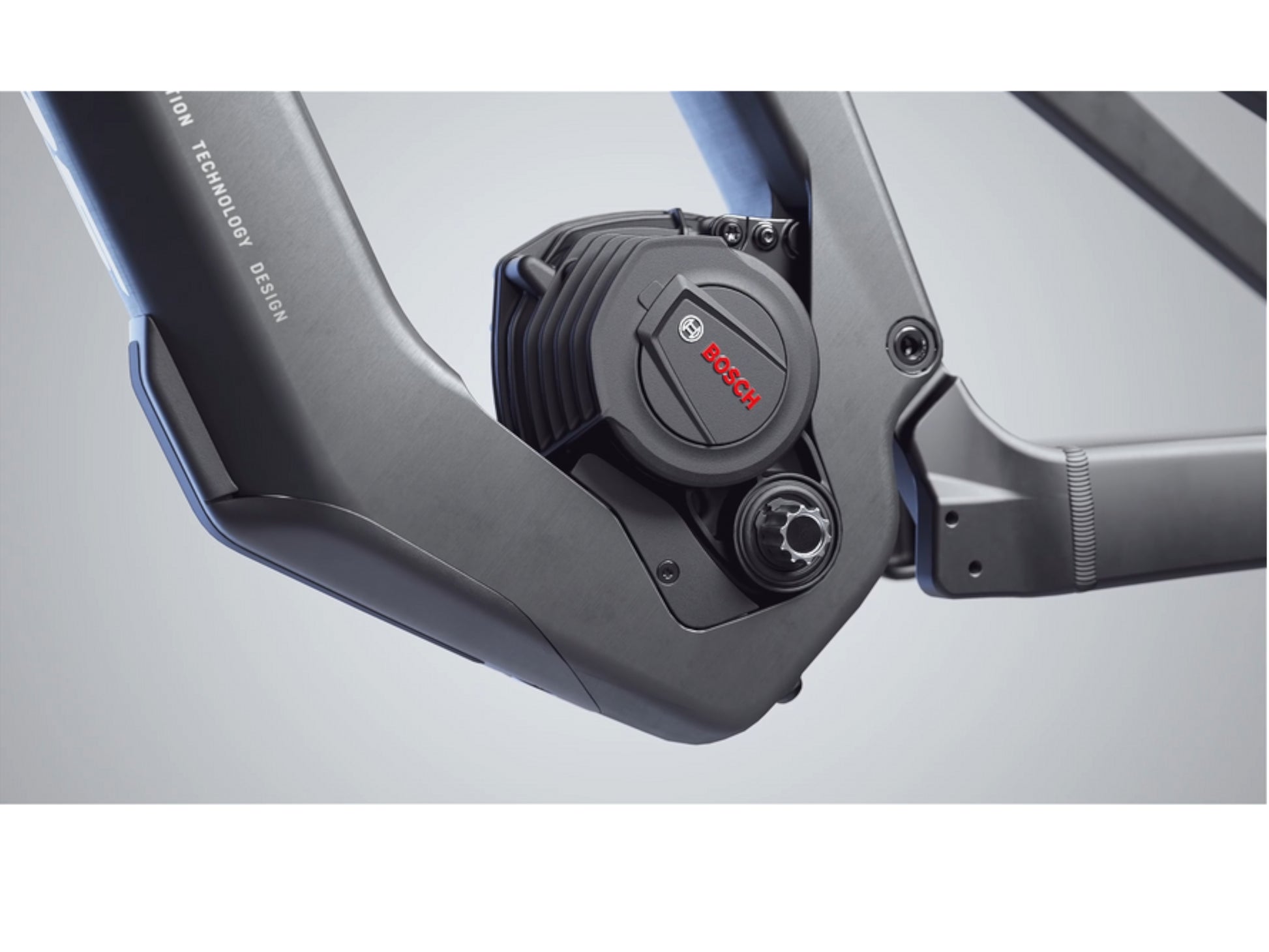

• Motor	Bosch Performance CX EU: 25kmh / INT: 20mph
  Battery	PowerTube 750Wh
  Display	Bosch LED Remote & Kiox 300
  Charger	4A Charger

• Frame	Alloy Frame & Link, Integrated cable
  Fork	RockShox Domain Air 15x110mm QR axle / 1.8" Tapered Steerer Reb. Adj. / 2 Modes / Lockout / 160mm travel / E-Bike
  Rear Shock	FOX Float EVOL eRIDE Trunnion 3 modes / Lockout-Trail-Descend DPS / Reb. Adj. Travel 160mm / 205x60mm
  Front Brake	Shimano BR-MT520 4 Piston
  Rear Brake	Shimano BR-MT520 4 Piston
  Rear Derailleur	Shimano XT 12 speed
  Shift Levers	Shimano SL-M6100
  Chain	Shimano CN-M6100
  Cassette	Shimano CS-M6100 / 10-51 T
  Crankset	FSA CK-745 165mm / 34T
  Chain Ring	FSA WB604 / 34T / DM / Steel
  Chain Guard	Spec not provided
  Rims	Syncros MD30 / 32H / 30mm / Pin Joint Tubeless ready
  Front Hub	Formula CL-811 / 15x110mm
  Rear Hub	Formula ECT-1481 / Boost 148x12mm
  Front Tire	Maxxis Dissector 29x2.6" 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra
  Rear Tire	Maxxis Dissector 29x2.6" 120TPI Foldable Bead EXO+ / TR Tubeless ready 3C Maxx Terra
  Handlebar	Syncros Hixon 1.5 / Alloy 7050D.B. 12mm rise / 9° / 780mm Syncros Pro lock-on grips
  Stem	Syncros AM2.0/ 6061 Alloy 31.8mm / 4° / 1 1/8
  Headset	Acros / 1.8" ZS66 OD74 / integr. Cable
  Grips	Spec not provided
  Saddle	Syncros Tofino 1.5 Regular Titanium rails
  Seatpost	Syncros Duncan Dropper Post 2.5 31.6mm / S size 125mm / M & L size 150mm / XL size 170mm

• Pedals	Not applicable
  Front Light	Not applicable
  Rear Light	Not applicable
  Kickstand	Not applicable
  Rear Carrier	Not applicable
  Fenders	Not applicable
  Bell	Not applicable
  Lock	Not applicable
  Mirror	Not applicable

• 		S	M	L	XL
  HEAD TUBE ANGLE	A	64.5 °	65.0 °	65.0 °	65.0 °
  HEAD TUBE LENGTH	B	4.7 IN	4.9 IN	5.3 IN	5.7 IN
  TOP TUBE HORIZONTAL	C	22.8 IN	23.4 IN	24.6 IN	25.8 IN
  STANDOVER HEIGHT	D	30.2 IN	30.2 IN	30.2 IN	30.2 IN
  BB OFFSET	E	-1.2 IN	-1.2 IN	-1.2 IN	-1.2 IN
  BB HEIGHT	F	13.7 IN	13.7 IN	13.7 IN	13.7 IN
  WHEEL BASE	G	48.1 IN	48.5 IN	49.8 IN	51.0 IN
  BB CENTER TO TOPTUBE CENTER	H	-	-	-	-
  BB CENTER TO TOP OF SEATTUBE	I	16.2 IN	17.3 IN	18.5 IN	19.7 IN
  SEAT ANGLE	J	77.0 °	76.9 °	76.9 °	76.8 °
  CHAINSTAY	K	17.9 IN	17.9 IN	17.9 IN	17.9 IN
  REACH	L	17.0 IN	17.6 IN	18.6 IN	19.7 IN
  STACK	M	25.0 IN	25.3 IN	25.6 IN	26.0 IN
  STEM LENGTH	N	2.0 IN	2.0 IN	2.4 IN	2.4 IN
  TRAIL	O	5.2 IN	5.1 IN	5.1 IN	5.1 IN
  FORK LENGTH	P	22.3 IN	22.3 IN	22.3 IN	22.3 IN
  MAXIMUM SEATPOST INSERTION	Q	9.6 IN	10.4 IN	11.8 IN	12.6 IN
  CRANK LENGTH	R	6.5 IN	6.5 IN	6.5 IN	6.5 IN
